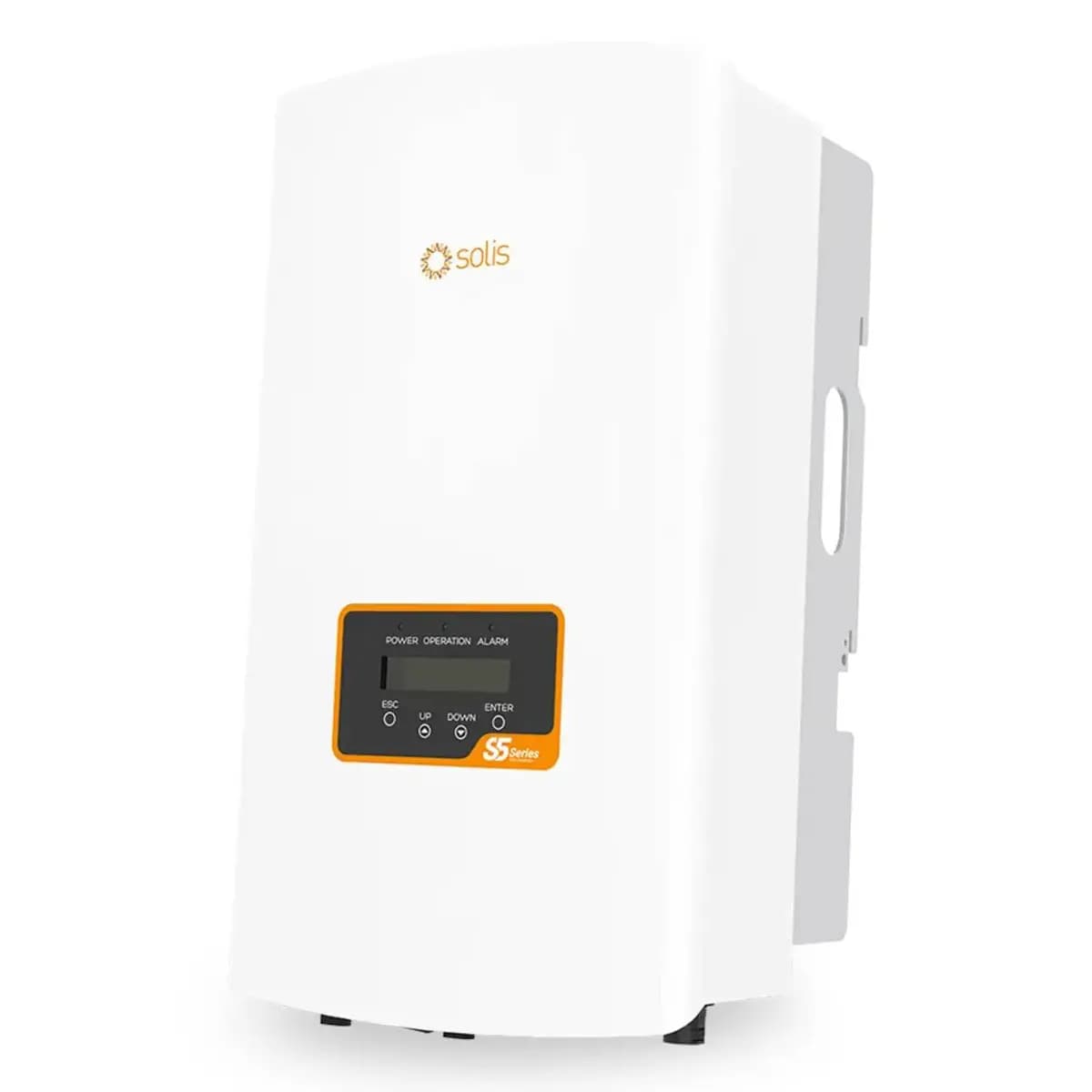

SOLIS 5KW Three Phase ON-Grid Inverter (S5-GR3P5K)

সম্ভাব্য ডেলিভারি সময়রেখা : ১৫ জুন ২০২৬ থেকে ২৫ জুন ২০২৬

হোম ডেলিভারীর ক্ষেত্রে অবশ্যই  ফুল পেমেন্ট করে অর্ডার করতে হবে অথবা ব্রাঞ্চ পিকাপ করতে হবে

Solis 5KW Three Phase ON-Grid Inverter (S5-GR3P5K) - Price in Bangladesh

Harness the power of the sun efficiently and reliably with the Solis 5KW Three Phase ON-Grid Inverter (S5-GR3P5K), now widely available in Bangladesh. Designed for both residential and light commercial solar power systems, this advanced inverter from Solis ensures maximum energy harvest, superior performance, and robust durability. As Bangladesh moves towards a greener future, the demand for high-quality, efficient solar solutions is soaring, and the Solis S5-GR3P5K stands out as an excellent choice for anyone looking to invest in a sustainable energy system.

Known for its cutting-edge technology and user-friendly design, the Solis S5-GR3P5K is engineered to deliver exceptional energy conversion efficiency, reducing your electricity bills and contributing to a healthier environment. Whether you're upgrading an existing solar setup or planning a new installation, finding the Solis 5KW Three Phase ON-Grid Inverter price in Bangladesh has never been easier, with numerous authorized dealers offering competitive rates and comprehensive support.

Overview of Solis S5-GR3P5K

The Solis S5-GR3P5K is a state-of-the-art 5kW three-phase on-grid inverter, part of Solis's renowned S5-GR3P series. This inverter is specifically designed for grid-tied solar photovoltaic (PV) systems, meaning it works in conjunction with your existing utility grid. It converts the direct current (DC) generated by your solar panels into alternating current (AC) that can be used by your home or business, with any excess energy fed back into the national grid, potentially earning you credits under net metering policies in Bangladesh.

Its three-phase output makes it ideal for properties with three-phase power connections, common in many commercial establishments and larger residences in Bangladesh. With high efficiency, advanced safety features, and smart monitoring capabilities, the Solis S5-GR3P5K offers a seamless and reliable solar energy experience, ensuring optimal performance even under varying environmental conditions.

Key Features of Solis S5-GR3P5K

The Solis S5-GR3P5K is packed with features that make it a top contender in the solar inverter market in Bangladesh:

• High Efficiency: Boasting a maximum efficiency of 98.6% and European efficiency of 97.9%, this inverter maximizes the energy yield from your solar panels, ensuring you get the most out of your investment.
• Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), the S5-GR3P5K can handle two independent strings of solar panels. This is particularly beneficial for installations with panels facing different orientations or subject to partial shading, optimizing energy harvest from each string.
• Wide MPPT Voltage Range: With an MPPT voltage range of 160V-1000V, the inverter can operate effectively across a broad spectrum of solar panel configurations and light conditions, ensuring consistent power generation.
• Compact and Lightweight Design: Measuring 310 x 543 x 160 mm and weighing just 15.5 kg, its sleek and lightweight design allows for easy installation and saves valuable space, making it a practical choice for various setups in Bangladesh.
• IP65 Protection: The robust IP65-rated enclosure provides excellent protection against dust and water ingress, making it suitable for outdoor installation and ensuring long-term reliability in Bangladesh's diverse climate.
• Advanced Safety Features: Includes comprehensive protection against DC reverse polarity, AC short circuit, overcurrent, overvoltage, anti-islanding, and an integrated Residual Current Monitoring Unit (RCMU) for enhanced safety.
• Natural Convection Cooling: Its fanless design relies on natural convection for cooling, which reduces noise levels and minimizes maintenance requirements, contributing to a longer operational lifespan.
• Flexible Communication Options: Comes standard with RS485 communication and offers optional Wi-Fi, GPRS, or LAN modules for remote monitoring, allowing you to track your system's performance from anywhere.
• User-Friendly LCD Display: Features a clear 128x64 LCD display for easy monitoring of real-time performance data and system status.

Why Choose Solis S5-GR3P5K? (Benefits)

Investing in the Solis S5-GR3P5K brings a multitude of benefits for homeowners and businesses in Bangladesh:

• Significant Energy Savings: High efficiency means more electricity generated from your solar panels, directly translating into lower electricity bills and faster return on investment.
• Reliable Performance: Solis is a globally recognized brand known for its commitment to quality and reliability. The S5-GR3P5K is built to last, offering stable performance for years.
• Optimized Energy Yield: Dual MPPTs and a wide operating voltage range ensure maximum power harvest, even when conditions are less than ideal, such as during partial shading or cloudy weather.
• Enhanced Safety: With multiple layers of protection, the inverter ensures the safety of your solar system, property, and personnel.
• Easy Monitoring: Remote monitoring capabilities allow you to keep an eye on your system's performance, identify potential issues, and track your energy production effortlessly, whether you're in Dhaka, Chittagong, or anywhere else.
• Durability for Bangladesh Climate: The IP65 rating ensures the inverter can withstand the humid and sometimes dusty conditions prevalent in various parts of Bangladesh, providing peace of mind.
• Contribution to Green Energy: By generating clean electricity, you're actively reducing your carbon footprint and contributing to Bangladesh's renewable energy goals.

Technical Specifications

Here are the detailed technical specifications for the Solis 5KW Three Phase ON-Grid Inverter (S5-GR3P5K):

Solis 5KW Three Phase ON-Grid Inverter (S5-GR3P5K) Specifications
Input Data (DC)
Max. DC Input Power	7500 W
Max. DC Voltage	1100 V
Rated Voltage	600 V
MPPT Voltage Range	160V - 1000V
Start-up Voltage	180 V
No. of MPPTs	2
Strings per MPPT	1
Max. Input Current per MPPT	12.5 A
Max. Short Circuit Current per MPPT	18 A
Output Data (AC)
Rated AC Output Power	5000 W
Max. AC Output Power	5500 VA
Rated AC Voltage	3/N/PE, 230V/400V
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Output Current	7.2 A (at 400V)
Power Factor	>0.99 (0.8 leading - 0.8 lagging adjustable)
THDi	<3%
Efficiency
Max. Efficiency	98.6%
European Efficiency	97.9%
Protection
DC Reverse Polarity Protection	Yes
AC Short Circuit Protection	Yes
Output Overcurrent Protection	Yes
Output Overvoltage Protection	Yes
Anti-islanding Protection	Yes
Residual Current Monitoring Unit (RCMU)	Yes
Surge Protection	Type II DC/AC
General Data
Dimensions (W*H*D)	310 x 543 x 160 mm
Weight	15.5 kg
Topology	Transformerless
Self-consumption (Night)	<1 W
Operating Temperature Range	-25°C to +60°C
Relative Humidity	0-100%
Enclosure Protection	IP65
Cooling	Natural Convection
Display	LCD, 128x64
Communication	RS485 (Standard), Optional: Wi-Fi, GPRS, LAN
Warranty	5 Years Standard (Extendable)

Installation & Usage Instructions

While the Solis S5-GR3P5K is designed for user-friendliness, its installation should always be performed by certified and experienced solar technicians. Proper installation ensures optimal performance, adherence to safety standards, and compliance with local grid regulations in Bangladesh.

1. Site Selection: Choose a well-ventilated location, preferably out of direct sunlight, to minimize heat stress, although its IP65 rating allows outdoor installation.
2. Mounting: Securely mount the inverter on a sturdy wall using the provided bracket, ensuring adequate clearance for natural convection cooling.
3. DC Wiring: Connect the DC input from your solar panels to the inverter's MPPT inputs, ensuring correct polarity and proper string configuration.
4. AC Wiring: Connect the AC output of the inverter to your three-phase electrical panel and subsequently to the utility grid, adhering to local electrical codes.
5. Grounding: Ensure the inverter is properly grounded for safety.
6. Communication Setup: Install the optional Wi-Fi/GPRS/LAN module for remote monitoring and connect it to your network.
7. Commissioning: Power on the inverter and follow the on-screen instructions or user manual for initial setup and grid synchronization.

For ongoing usage, regularly monitor the inverter's performance via the LCD display or the Solis Cloud app. Ensure the area around the inverter remains free of obstructions to facilitate proper cooling. Minimal maintenance, such as occasional cleaning of the vents, will help ensure its longevity.

Safety & Protection Features

Safety is paramount in any electrical installation, especially with high-voltage solar systems. The Solis S5-GR3P5K incorporates multiple safety mechanisms to protect both the system and its users:

• DC Reverse Polarity Protection: Prevents damage to the inverter if the DC input wires from the solar panels are connected incorrectly.
• AC Short Circuit Protection: Automatically shuts down the inverter in case of an AC short circuit, preventing damage to the inverter and the electrical system.
• Output Overcurrent Protection: Protects the inverter from excessive current draw on the AC output.
• Output Overvoltage Protection: Safeguards against dangerously high voltage levels on the AC output.
• Anti-islanding Protection: A critical safety feature that ensures the inverter disconnects from the grid immediately during a power outage, preventing electricity from flowing back to the grid and endangering utility workers.
• Residual Current Monitoring Unit (RCMU): Detects ground faults and leakage currents, providing an additional layer of protection against electric shock and fire hazards.
• Integrated Surge Protection (Type II DC/AC): Protects the inverter from voltage spikes caused by lightning strikes or other electrical disturbances on both DC and AC sides.

Availability & Price in Bangladesh

The Solis 5KW Three Phase ON-Grid Inverter (S5-GR3P5K) is widely available across Bangladesh through authorized distributors and solar solution providers. You can easily find this high-performance inverter in major cities like Dhaka, Chittagong, Sylhet, Khulna, and other regions where solar energy adoption is growing rapidly. Many suppliers offer competitive Solis 5KW Three Phase ON-Grid Inverter price in Bangladesh, often ranging from ৳68,000 to ৳82,000, depending on the dealer, warranty package, and any ongoing promotions. It's always advisable to compare prices from a few reputable dealers to ensure you get the best deal.

For those searching "Solis S5-GR3P5K near me," a quick online search or inquiry with local solar companies will connect you with authorized dealers who can provide detailed quotations, installation services, and after-sales support. Most suppliers also offer efficient delivery in Bangladesh, ensuring your inverter reaches your location safely and promptly. Whether you're planning a new solar installation or upgrading an existing one, the Solis S5-GR3P5K is an excellent investment for sustainable energy in the Bangladesh market.

Warranty & Support

Solis provides a standard 5-year warranty for the S5-GR3P5K inverter, demonstrating their confidence in the product's quality and durability. Many authorized dealers in Bangladesh also offer options to extend this warranty period, providing even greater peace of mind. Local support teams are generally available to assist with technical queries, troubleshooting, and warranty claims, ensuring that your solar power system operates smoothly for its entire lifespan. Always purchase from authorized channels to ensure you receive genuine products and valid warranty support.
