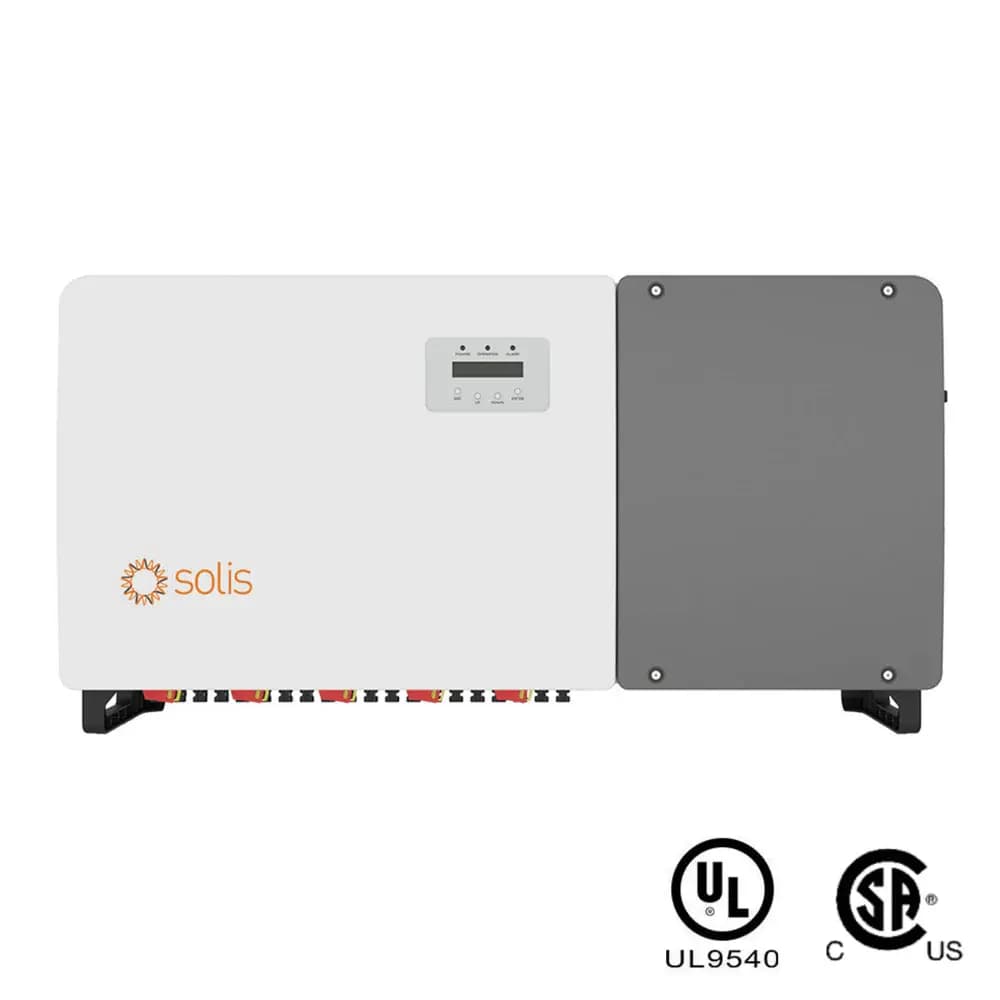

SOLIS 100KW Three Phase ON-GRID Inverter (S5-GC100K)

Empower your large-scale solar projects with the cutting-edge SOLIS 100KW Three Phase ON-GRID Inverter (S5-GC100K), now readily available in Bangladesh. Designed for superior performance, reliability, and efficiency, this inverter is the ideal choice for commercial, industrial, and utility-scale solar installations seeking to maximize energy harvest and operational uptime. As a leading solution in the global solar market, the Solis S5-GC100K brings advanced technology and robust engineering to the challenging power demands of Bangladesh.

Overview

The Solis S5-GC100K is a high-power, three-phase string inverter engineered to deliver exceptional performance for grid-tied photovoltaic systems. With a nominal AC output power of 100kW, it is perfectly suited for large rooftop solar arrays, ground-mounted solar farms, and various commercial applications across Bangladesh. Featuring multiple Maximum Power Point Trackers (MPPTs), a wide input voltage range, and an industry-leading efficiency rating, this inverter ensures optimal energy production even under varying solar conditions. Its robust design and comprehensive protection features guarantee long-term reliability and safety, making it a smart investment for any serious solar developer in Bangladesh.

Why Choose the SOLIS S5-GC100K for Your Project in Bangladesh?

Unmatched Efficiency for Maximum Yield

The SOLIS S5-GC100K boasts an impressive maximum efficiency of 98.7% and a European efficiency of 98.2%. This high conversion efficiency translates directly into more electricity generated from your solar panels, leading to quicker return on investment and greater savings on energy bills. For businesses and industries in Bangladesh, where energy costs can be significant, optimizing every watt of power is crucial, and the Solis S5-GC100K delivers exactly that.

Robust Design for Harsh Environments

Built to withstand the diverse and often challenging climatic conditions of Bangladesh, the S5-GC100K features an IP66 protection rating. This ensures complete protection against dust ingress and powerful water jets, making it suitable for outdoor installation even in areas prone to heavy monsoon rains or dusty environments. Its durable construction guarantees longevity and consistent performance, minimizing maintenance requirements and downtime.

Smart Monitoring & Control Capabilities

Stay in complete control of your solar power plant with the advanced monitoring features of the Solis S5-GC100K. Equipped with RS485 communication as standard, and optional Wi-Fi, GPRS, or LAN modules, you can remotely monitor your system's performance in real-time. Access vital data, identify potential issues, and optimize operations from anywhere, ensuring your investment in Bangladesh delivers continuous, peak performance.

Enhanced Safety Features

Safety is paramount, especially for high-power electrical installations. The Solis S5-GC100K includes a comprehensive suite of protection features: DC reverse polarity protection, AC short-circuit protection, over-current protection, over-voltage protection (Type II SPD for both DC and AC), anti-islanding protection, and an integrated Residual Current Monitoring Unit (RCMU). These features ensure the safety of personnel and equipment, providing peace of mind for operators in Bangladesh.

Easy Installation & Maintenance

Despite its powerful capabilities, the Solis S5-GC100K is designed for straightforward installation and hassle-free maintenance. Its compact design relative to its power output, coupled with user-friendly interfaces, simplifies the deployment process. The clear display and accessible components make routine checks and servicing efficient, reducing operational costs over the inverter's lifespan.

Key Features at a Glance

• 100kW AC Output Power: Ideal for large commercial and industrial solar projects.
• Multiple MPPTs (e.g., 9-10 MPPTs): Ensures maximum energy harvest from diverse solar array orientations and shading conditions.
• High Efficiency: Max. 98.7% efficiency, European efficiency 98.2%.
• Wide Voltage Range: DC input voltage range from 200V to 1100V.
• IP66 Protection: Suitable for outdoor installation, resistant to dust and water.
• Integrated DC Switch: For safe and convenient maintenance.
• Type II SPD for DC & AC: Enhanced protection against lightning and surges.
• Anti-PID Function (Optional): Mitigates potential induced degradation for prolonged panel lifespan.
• Smart I-V Curve Scanning: Helps diagnose panel performance issues.
• Export Power Control: Allows for grid-friendly operation.
• Advanced Communication: RS485, optional Wi-Fi/GPRS/LAN for remote monitoring.
• Transformerless Topology: For lightweight design and higher efficiency.
• Low Start-up Voltage: Begins generating power earlier in the day.
• Fan Cooling: Efficient heat dissipation for stable operation.

Technical Specifications

Parameter	Specification
Input (DC)
Max. DC Input Power	150 kW
Max. DC Input Voltage	1100 V
Min. DC Start-up Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Rated Input Voltage	600 V
No. of MPPTs	9
Strings per MPPT	2
Max. Input Current per MPPT	26 A
Max. Short Circuit Current per MPPT	32 A
Output (AC)
Rated AC Output Power	100 kW
Max. AC Output Power	110 kVA
Rated AC Voltage	3/N/PE, 230V/400V
AC Voltage Range	310 V - 480 V
Rated Grid Frequency	50 Hz / 60 Hz
Grid Frequency Range	45 Hz - 55 Hz / 55 Hz - 65 Hz
Max. Output Current	144.3 A
Power Factor	>0.99 (0.8 leading - 0.8 lagging)
THDi	<2% (at rated power)
Efficiency
Max. Efficiency	98.7%
European Efficiency	98.2%
MPPT Efficiency	>99.9%
Protection
DC Reverse Polarity Protection	Yes
AC Short Circuit Protection	Yes
Over Current Protection	Yes
Over Voltage Protection (DC/AC)	Type II SPD
Anti-Islanding Protection	Yes
Residual Current Monitoring Unit (RCMU)	Yes
Insulation Resistance Monitoring	Yes
General Data
Dimensions (W x H x D)	720 x 530 x 320 mm
Weight	74 kg
Topology	Transformerless
Operating Temperature Range	-25°C to +60°C
Self-Consumption (Night)	<1 W
Cooling Concept	Smart Forced Air Cooling
Protection Degree	IP66
Display	LED Indicators, Optional LCD
Communication	RS485 (Standard), Optional Wi-Fi/GPRS/LAN
Warranty	Standard 5 years (Extendable)

Benefits for Your Solar Project in Bangladesh

• Optimized Energy Production: High efficiency and multiple MPPTs ensure maximum power generation, crucial for meeting high energy demands in commercial settings in Bangladesh.
• Reduced Operational Costs: Its robust build and advanced protection minimize the need for repairs and replacements, leading to lower lifetime costs.
• Reliable Performance: Designed for durability and consistent operation, even in challenging environmental conditions common in Bangladesh.
• Enhanced Monitoring: Real-time data and remote control capabilities offer unparalleled insight and management of your solar assets.
• Grid Compatibility: Seamless integration with the Bangladesh national grid, adhering to local grid codes and standards for hassle-free operation.
• Scalability: Easily integrate multiple S5-GC100K units for even larger utility-scale projects, offering flexible expansion options.

Ideal Applications

The SOLIS S5-GC100K is perfectly suited for a wide array of high-power solar applications:

• Large Commercial Rooftop Solar Systems
• Industrial Solar Power Plants
• Agricultural Solar Pumping Stations
• Utility-Scale Solar Farms
• Educational Institutions and Hospitals with significant energy needs
• Government Buildings and Public Infrastructure Projects

How to Install and Operate (Brief Overview)

Installation of the SOLIS S5-GC100K should always be performed by certified electricians or solar technicians in accordance with local electrical codes and the manufacturer's guidelines. Key steps include secure wall mounting, proper DC input wiring from solar arrays to the respective MPPTs, secure AC output wiring to the grid connection point, and grounding. Configuration and commissioning involve setting grid parameters, communication setup (RS485, Wi-Fi, or GPRS), and system testing. The user-friendly interface or remote monitoring platform allows for easy operation and performance tracking once installed.

Availability and Price of SOLIS S5-GC100K in Bangladesh

The SOLIS 100KW Three Phase ON-GRID Inverter (S5-GC100K) is widely available through authorized distributors and solar solution providers across Bangladesh. If you're searching for "Solis 100KW inverter in Bangladesh" or "Solis S5-GC100K price in Bangladesh", you'll find competitive pricing and excellent service from reputable vendors. For the best price in Bangladesh and reliable after-sales support, it is recommended to contact official Solis partners. Many suppliers offer nationwide delivery in Bangladesh and can assist with installation services. You can often find this product "near me" by checking with local solar equipment suppliers in major cities like Dhaka, Chittagong, Sylhet, and Khulna.

While specific prices can vary due to market dynamics, import duties, and dealer offers, expect the SOLIS S5-GC100K to be priced competitively within the 100KW three-phase inverter segment, typically ranging from ৳3,80,000 to ৳4,50,000, depending on warranty terms, additional features, and supplier. Always request a formal quotation from multiple authorized dealers to ensure you receive the most current and best possible price in Bangladesh for your specific project needs.

Conclusion

For any large-scale solar power project in Bangladesh, the SOLIS 100KW Three Phase ON-GRID Inverter (S5-GC100K) stands out as a top-tier choice. Its blend of high efficiency, robust design, smart monitoring, and comprehensive safety features makes it a reliable and cost-effective solution for maximizing your solar investment. Choose Solis for a powerful, dependable, and future-proof solar energy system that performs exceptionally in the Bangladesh market.
