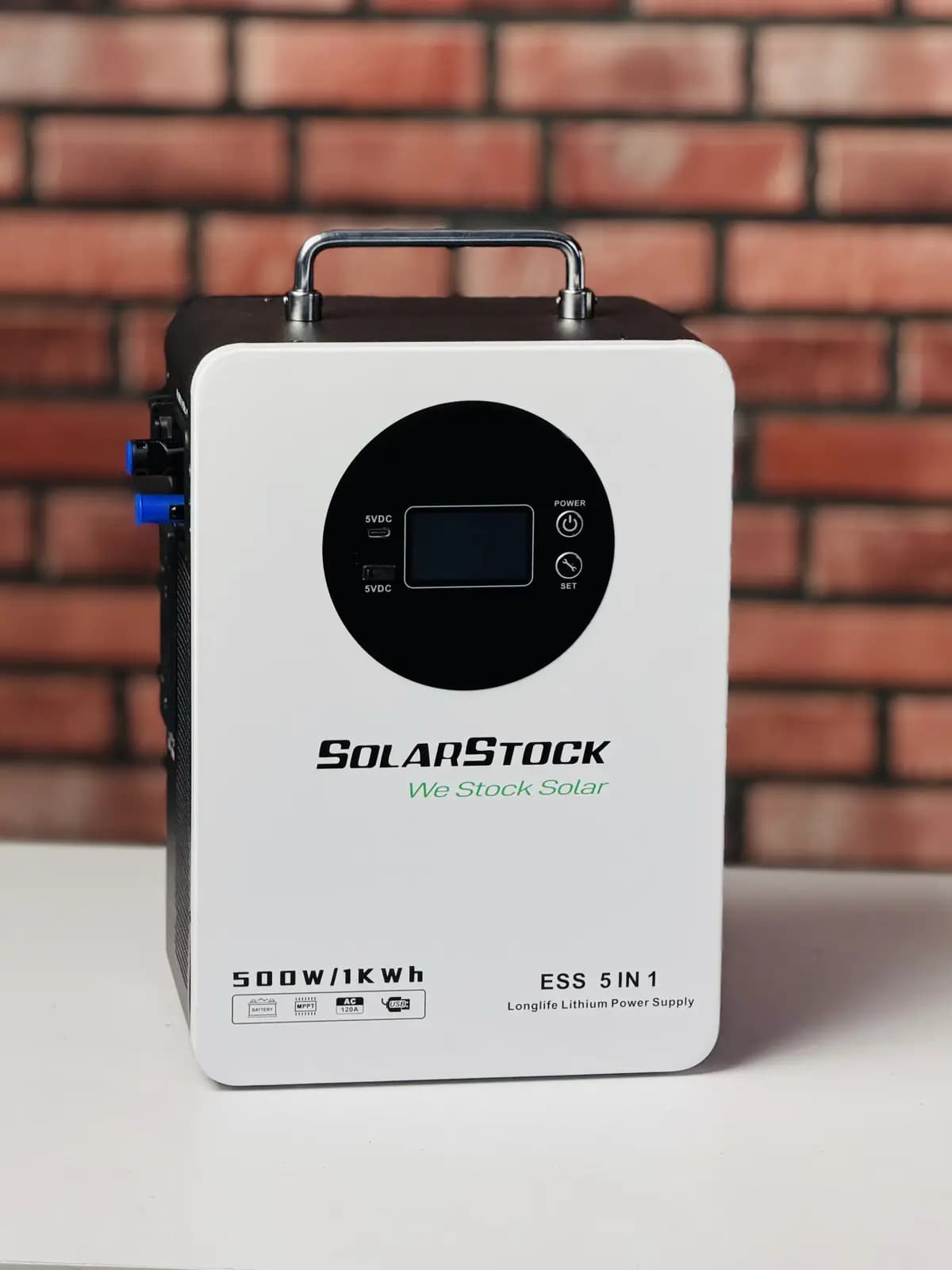

9% OFFSolarstock SS-LPS500B 500W Smart Lithium Energy Storage System with MPPT & LCD Display
Product ID: 18991
No reviews yet
৳45,490৳49,900Save ৳4,410
In stock (101 available)
Quantity:
1
101 availableShipping Options
Office Pickup
Free
Pick up from our office
Inside Dhaka
৳50
1-3 business days
Outside Dhaka
৳100
2-5 business days
| Model | SS-LPS500B |
|---|---|
| SPECIFICATION | |
| Inverter / Charger | |
| Rated AC Output Power | 500W |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage | 185~230Vac 50Hz |
| Low DC Warning Point | ≤19% |
| Low DC Cut-off Voltage | 3.0Vdc |
| Low DC Warning Return Voltage | >20% |
| Charging Power (Grid and solar to gether) | 500W Max. |
| Bulk Charging Voltage | 3.6Vdc |
| Float Charging Voltage | 3.5Vdc |
| AC Input | |
| Rated Input Voltage | 230Vac |
| Max. AC Input Voltage | 300Vac |
| Rated Input Frequency | 45~65Hz |
| AC Charging Power | 500W Max. |
| Solar Input | |
| Rated PVVoltage | 30Vdc |
| PV Array MPPT Voltage Range | 10Vdc~55Vdc |
| Max. PV Array Open Circuit Voltage | 56Vdc |
| Solar Charging Power | 300W Max. |
| Lithium-ion Battery | |
| Capacity | 1004.8Wh |
| Rated Battery Voltage | 3.2Vdc |
| Cell Capacity | 314Ah |
| Max .Charge Current | 220A |
| Max. Discharge Current | 220A |
| Operation Voltage Range | 3.0Vdc~3.6Vdc |
| Operation Temperature | -10°℃~+50°C |
| DC Output | |
| DC Output Power | DC12V 60W Max. |
| DC Output Socket | DC12V 60W Max. |
| Display Function | |
| LED Indicator | LCD display |
| Protection | Overcharge protection, Over discharge protection, Overcurrent protection, Short circuit protection, Overtemperature protection |
| Ambient | |
| Noise (dB) | <60dB (1 meter) |
| Working Temperature | -10℃~+50°℃ |
| Dimension : | |
| L*W*H (products size) | L322*W230*H150mm |
| LXWXH (package size) | L385*W300*H230mm |
| Net Weight (kg) | 10.3kg |
| Gross Weight (kg) | 11.5 kg |
