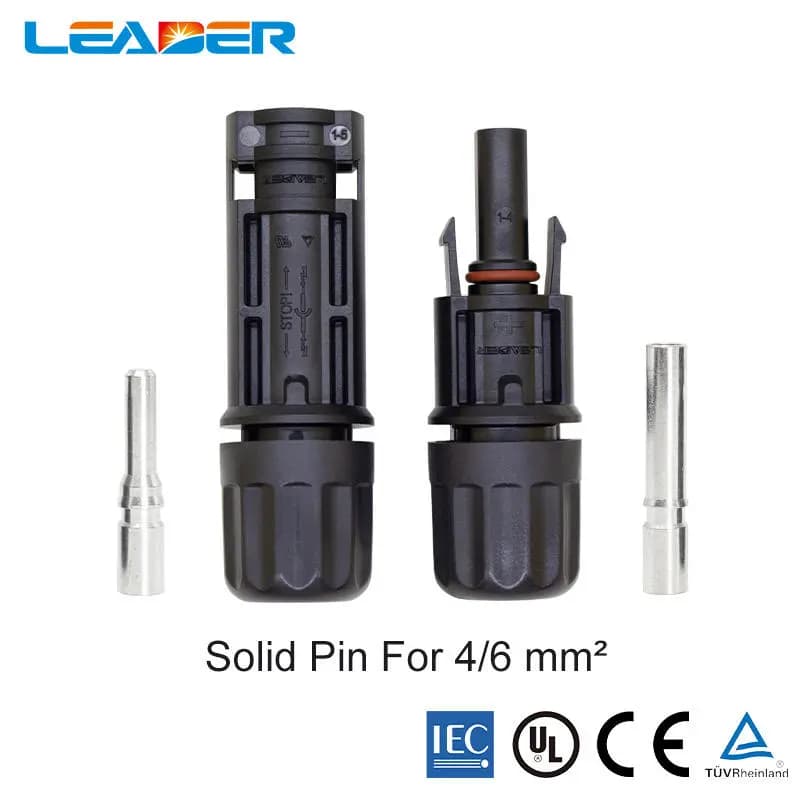

Leader MC4 Solar Panel Connector For Solar System

Leader MC4 Solar Panel Connector For Solar System – Essential for Reliable Solar Power in Bangladesh

Unlock the full potential of your solar power system with the high-quality Leader MC4 Solar Panel Connector. Designed for maximum efficiency, safety, and durability, this connector is an indispensable component for any grid-tied or off-grid solar installation. Whether you're setting up a new solar array or upgrading an existing one, the Leader MC4 connector ensures a robust and reliable connection between your solar panels and inverter or charge controller. Get yours today at the competitive price of ৳399 BDT, making it an excellent value for solar enthusiasts across Bangladesh.

In the rapidly growing solar market of Bangladesh, choosing the right accessories is crucial for long-term performance. The Leader MC4 Solar Panel Connector stands out for its superior design and construction, offering unparalleled weather resistance and electrical conductivity. It’s the perfect solution for anyone searching for a dependable solar connector in Bangladesh, ensuring your investment in solar energy delivers consistent power for years to come.

Key Features of the Leader MC4 Solar Panel Connector

The Leader MC4 Solar Panel Connector is engineered with precision to meet the demanding requirements of solar energy systems. Here are its standout features:

• High Current and Voltage Rating: Capable of handling up to 30A current and 1000V DC voltage, making it suitable for a wide range of solar panel configurations, from residential to commercial applications in Bangladesh.
• IP67 Waterproof and Dustproof: With an ingress protection rating of IP67, these connectors are completely sealed against dust and can withstand immersion in water up to 1 meter for 30 minutes. This ensures reliable operation even in the varied climatic conditions of Bangladesh.
• UV Resistant PPO/PC Material: Constructed from high-quality PPO (Polyphenylene Oxide) or PC (Polycarbonate) material, the connectors offer excellent resistance to UV radiation, extreme temperatures, and harsh environmental factors, preventing degradation over time.
• Tinned Copper Contacts: The internal contacts are made from high-grade tinned copper, providing superior electrical conductivity and corrosion resistance, which is vital for maintaining efficiency and longevity in a solar system.
• Secure Locking Mechanism: Features a robust snap-in locking system that ensures a firm and secure connection, preventing accidental disconnections due to wind, vibration, or other external forces.
• Easy Installation: Designed for quick and hassle-free assembly and disassembly with standard MC4 crimping tools, making installation straightforward for both professional installers and DIY enthusiasts.
• Wide Cable Compatibility: Compatible with various cable sizes, including 2.5mm², 4mm², and 6mm² (14AWG, 12AWG, 10AWG), offering flexibility for different solar panel wiring setups.
• Flame Retardant (UL94-V0): The insulation material meets UL94-V0 flame retardancy standards, enhancing safety by minimizing fire risk.

Why Choose Leader MC4 Connectors for Your Solar Project in Bangladesh?

Investing in quality components like the Leader MC4 Solar Panel Connector is crucial for the long-term success and safety of your solar power system. Here’s why this connector is the preferred choice for many in the Bangladesh market:

• Enhanced System Efficiency: Low contact resistance (≤0.5mΩ) minimizes power loss, ensuring maximum energy harvest from your solar panels.
• Superior Durability: Built to withstand extreme weather conditions, including heavy rain, high humidity, and intense sunlight, common in Bangladesh. This longevity reduces the need for frequent replacements.
• Safety First: The robust insulation, secure locking mechanism, and flame-retardant materials significantly reduce the risk of electrical shorts, arcing, and fire hazards, protecting your property and investment.
• Cost-Effective Solution: At just ৳399 BDT, the Leader MC4 connector offers exceptional quality and performance at an affordable price, providing excellent value for money for solar system owners in Bangladesh.
• Reliable Performance: Ensures stable and consistent power flow, preventing interruptions and maximizing the uptime of your solar energy system.
• Universal Compatibility: As a standard MC4 connector, it is compatible with most solar panels and solar cables available globally, offering great flexibility for system design.

Technical Specifications of Leader MC4 Solar Panel Connector

Understanding the specifications helps you ensure compatibility and optimal performance for your solar setup. Here are the detailed technical specifications for the Leader MC4 Solar Panel Connector:

Specification	Value
Product Name	Leader MC4 Solar Panel Connector For Solar System
Brand	Select Brand (Leader Series)
Rated Voltage	1000V DC
Rated Current	30A (for 4mm² cable)
Contact Material	Tinned Copper
Insulation Material	PPO/PC (Polyphenylene Oxide/Polycarbonate)
Contact Resistance	≤0.5mΩ
Protection Degree	IP67 (Waterproof & Dustproof)
Ambient Temperature Range	-40°C to +90°C
Upper Limit Temperature	110°C
Flame Class	UL94-V0
Suitable Cable Size	2.5mm², 4mm², 6mm² (14AWG, 12AWG, 10AWG)
Pull-out Force	≥50N
Insertion Force	≤50N
Insulation Resistance	>500MΩ
Typical Dimensions (Male/Female Pair)	Approx. 59mm (length) x 18mm (diameter each)
Weight (Per Pair)	Approx. 35 grams
Certifications	TUV, CE (standard for MC4 type connectors)

Installation and Usage Instructions

Using the Leader MC4 Solar Panel Connector is straightforward, but proper installation is key to ensuring safety and performance:

1. Prepare Cables: Strip approximately 6mm-8mm of insulation from the end of your solar PV cable (2.5mm², 4mm², or 6mm²).
2. Crimp Contacts: Insert the stripped cable into the metal pin (male or female contact) and use a dedicated MC4 crimping tool to crimp it securely. Ensure a firm, low-resistance connection.
3. Assemble Connector: Insert the crimped contact into the corresponding MC4 connector housing (male or female). Listen for a click, indicating it's securely seated.
4. Tighten Gland Nut: Screw the gland nut onto the connector body until it's hand-tight, then use an MC4 spanner tool to tighten it further, ensuring the IP67 waterproof seal is properly formed around the cable.
5. Connect Panels: Align the male and female connectors and push them together until they click into place. The locking tabs will engage, securing the connection.
6. Disconnecting: To disconnect, use the MC4 spanner tool to release the locking tabs, then pull the connectors apart. Never pull by the cable alone.

Always ensure that connections are made when the solar panels are not producing power (e.g., covered or at night) or the system is completely de-energized to avoid electrical shock.

Applications of Leader MC4 Solar Panel Connectors

The versatility and robust design of the Leader MC4 Solar Panel Connector make it suitable for a wide array of solar energy applications:

• Residential Solar Systems: Ideal for rooftop solar installations on homes across Bangladesh, ensuring safe and efficient power generation.
• Commercial and Industrial Solar Projects: Used in larger solar farms, commercial building rooftops, and industrial complexes requiring high-reliability connections.
• Off-Grid Solar Solutions: Perfect for remote cabins, rural electrification projects, and portable solar setups where durability and weather resistance are paramount.
• Solar Water Pumping Systems: Ensures a stable power supply for solar-powered irrigation and water supply systems in agricultural areas.
• DIY Solar Projects: Easy to use for hobbyists and those building custom solar solutions.

Availability and Price of Leader MC4 Solar Panel Connector in Bangladesh

The Leader MC4 Solar Panel Connector For Solar System is readily available for purchase throughout Bangladesh. You can find this essential solar accessory at an unbeatable price of ৳399 BDT. We are committed to providing the best price in Bangladesh for high-quality solar components, ensuring that reliable solar power is accessible to everyone.

For those searching for "Leader MC4 Solar Panel Connector in Bangladesh" or "MC4 connector price in Bangladesh," your search ends here. We offer convenient options for purchase, with nationwide delivery in Bangladesh. If you're looking for "Leader MC4 Solar Panel Connector near me," please check our online store or contact our customer service for details on local pickup points or quick delivery services.

Don't compromise on the quality and safety of your solar system. Choose the Leader MC4 Solar Panel Connector for its proven performance, durability, and excellent value. Order now and take a step closer to a more sustainable and energy-independent future!
