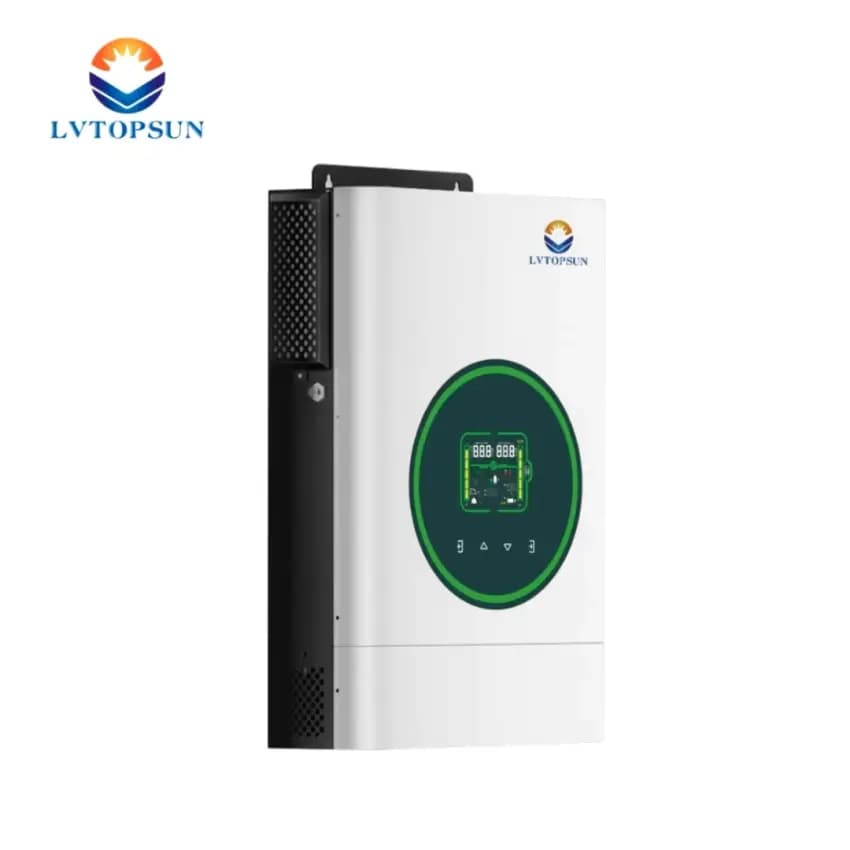

LVTOPSUN 6KW 48V Solar Hybrid Inverter

LVTOPSUN 6KW 48V Solar Hybrid Inverter: The Ultimate Power Solution for Bangladesh Homes & Businesses

Are you searching for a reliable, efficient, and cost-effective power solution to combat frequent power outages and soaring electricity bills in Bangladesh? Look no further than the LVTOPSUN 6KW 48V Solar Hybrid Inverter. This advanced inverter is engineered to seamlessly integrate solar power, grid electricity, and battery storage, providing uninterrupted power and significant energy savings for your home or business. It's the perfect choice for anyone seeking energy independence and a stable power supply across the diverse power landscape of Bangladesh.

Designed with cutting-edge technology, the LVTOPSUN 6KW 48V Solar Hybrid Inverter offers a robust and intelligent energy management system. Whether you're in Dhaka, Chittagong, Sylhet, or a remote village, this inverter ensures your essential appliances and systems run smoothly. Discover the best LVTOPSUN 6KW 48V Solar Hybrid Inverter in Bangladesh and take a step towards a sustainable future.

Overview

The LVTOPSUN 6KW 48V Solar Hybrid Inverter is a versatile, multi-functional inverter/charger that combines the functions of an inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display provides user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. This inverter is specifically optimized for the demanding conditions of the Bangladesh market, providing stable and clean pure sine wave power essential for sensitive electronics.

Key Features & Benefits

• Pure Sine Wave Output: Delivers clean, stable power suitable for all types of loads, from sensitive electronics to heavy-duty appliances, ensuring their longevity and optimal performance.
• 6000W Continuous Power: Provides a robust 6KW (6000 Watts) of continuous power, capable of running multiple household appliances, office equipment, or small business machinery simultaneously.
• 48VDC Battery System: Operates on a stable 48V battery bank, allowing for greater efficiency, reduced current, and more flexible battery configurations.
• Integrated MPPT Solar Charge Controller: Features a high-efficiency 120A MPPT (Maximum Power Point Tracking) solar charge controller, maximizing power harvesting from your solar panels, even under varying weather conditions typical in Bangladesh.
• Multiple Operating Modes: Offers flexible operating modes including Grid-tie with battery backup, Off-grid, and Hybrid mode, allowing you to optimize energy usage based on your specific needs and local grid conditions.
• High Surge Capability: Boasts a 12000W surge power rating for 5 seconds, effortlessly handling high startup currents from motors, refrigerators, and other inductive loads.
• Smart Battery Charger: Equipped with a powerful 100A utility charger that intelligently charges your batteries from the grid when solar power is insufficient, ensuring your power backup is always ready.
• Configurable AC/Solar Input Priority: Allows users to prioritize power sources (solar first, utility first, or solar and utility) to optimize energy usage and cost savings.
• Generator Compatibility: Designed to work seamlessly with generators, providing an additional layer of backup power security.
• Comprehensive Protection Features: Includes overload, over-temperature, short circuit, battery overcharge/discharge, and reverse polarity protection for safe and reliable operation.
• User-Friendly LCD Display: An intuitive LCD display provides real-time monitoring of system status, battery voltage, charging current, and power output, making it easy to manage your energy system.
• Communication Ports: Comes with USB and RS232 communication ports for PC monitoring, with optional WiFi/GPRS modules available for remote monitoring via smartphone or web, a crucial feature for modern smart homes in Bangladesh.

Advanced Technology for Reliable Performance

The heart of the LVTOPSUN 6KW 48V Solar Hybrid Inverter lies in its advanced digital control technology. The integrated MPPT controller ensures that your solar panels operate at their peak efficiency, converting maximum sunlight into usable electricity. This is particularly important in Bangladesh, where varying cloud cover can impact solar panel output. The pure sine wave output guarantees that your sensitive electronics, like computers, medical equipment, and modern appliances, receive clean and stable power, preventing damage and extending their lifespan. With its fast transfer time, the inverter ensures a seamless switch between power sources, making power cuts virtually unnoticeable.

Comprehensive Protection Features

Safety and reliability are paramount. The LVTOPSUN inverter is built with multiple layers of protection to safeguard both the unit and your connected appliances. These include protection against:

• Overload and Short Circuit
• Battery Over/Under Voltage
• Over Temperature
• PV Array Reverse Polarity
• Overcharge and Deep Discharge

These features ensure peace of mind, knowing your investment and appliances are well-protected from electrical anomalies common in the grid system of Bangladesh.

Seamless Connectivity & Monitoring

Managing your power system has never been easier. The LVTOPSUN 6KW 48V Solar Hybrid Inverter features an intelligent LCD display for immediate feedback on system performance. For more detailed analysis and remote control, the built-in USB and RS232 ports allow connection to a PC. Furthermore, with optional WiFi or GPRS modules, you can monitor your system's performance, energy generation, and consumption from anywhere in Bangladesh or the world, directly from your smartphone or web browser. This smart monitoring capability empowers you to make informed decisions about your energy usage.

Technical Specifications

Here are the detailed specifications for the LVTOPSUN 6KW 48V Solar Hybrid Inverter:

Feature	Specification
Model	LVTOPSUN SPS-6000-48
Rated Power	6000W (6KW)
Surge Power	12000W (5 seconds)
Battery Voltage	48VDC
Battery Type	Lead-acid (AGM/Gel/Flooded), Lithium-ion (User Selectable)
AC Output Voltage	230VAC ± 5% (Single Phase)
AC Output Frequency	50Hz / 60Hz (Auto sensing)
Waveform	Pure Sine Wave
Efficiency (Peak)	>93%
Transfer Time	10ms (UPS mode), 20ms (Appliance mode)
Solar Charger Type	MPPT (Maximum Power Point Tracking)
Max PV Array Power	6500W
Max PV Array Open Circuit Voltage	500VDC
MPPT Range @ Operating Voltage	120VDC ~ 450VDC
Max Solar Charge Current	120A
Max AC Charge Current	100A
Max Combined Charge Current	120A
Communication Interface	USB, RS232, Dry Contact, Optional WiFi/GPRS
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% Relative Humidity (Non-condensing)
Dimensions (D x W x H)	140 x 295 x 480 mm
Weight	13.5 kg
Protection	Overload, Short Circuit, Over Temperature, Battery Over/Under Voltage, Overcharge, Reverse Polarity (PV)
Certifications	CE, IEC 62109-1

Why Choose the LVTOPSUN 6KW 48V Hybrid Inverter in Bangladesh?

In a country like Bangladesh, where grid instability and rising energy costs are common concerns, investing in a reliable solar hybrid inverter is a smart decision. The LVTOPSUN 6KW 48V model offers:

• Uninterrupted Power Supply: Say goodbye to load shedding and power cuts. This inverter ensures your home or business stays powered 24/7.
• Significant Cost Savings: By prioritizing solar energy, you reduce your reliance on expensive grid electricity, leading to substantial savings on your monthly bills.
• Environmental Friendliness: Harnessing solar power reduces your carbon footprint, contributing to a greener Bangladesh.
• Scalability and Flexibility: The hybrid design allows you to expand your solar array or battery bank in the future, adapting to changing energy needs.
• Reliability and Durability: Built to withstand diverse environmental conditions, it offers a long operational lifespan, making it a valuable asset for years to come.

Ideal Applications

The versatility of the LVTOPSUN 6KW 48V Solar Hybrid Inverter makes it suitable for a wide range of applications:

• Residential Homes: Powering household appliances, lighting, air conditioning, and entertainment systems.
• Small Offices & Shops: Ensuring continuous operation of computers, POS systems, lighting, and security systems.
• Remote Locations: Providing independent power for areas with unreliable or no grid access, such as farms, rural homes, or cabins in Bangladesh.
• Agricultural Use: Running irrigation pumps, processing equipment, and lighting in agricultural settings.
• Emergency Backup: A critical component for emergency power systems in hospitals, clinics, or essential service providers.

Installation & Usage Guidelines

For optimal performance and safety, it is highly recommended to have the LVTOPSUN 6KW 48V Solar Hybrid Inverter installed by a certified solar technician. Ensure proper sizing of solar panels and battery bank according to your energy consumption. Always refer to the detailed user manual for specific wiring diagrams, configuration settings, and maintenance procedures. Regular cleaning of solar panels and periodic battery checks will ensure the longevity and efficiency of your solar power system.

Price and Availability in Bangladesh

The LVTOPSUN 6KW 48V Solar Hybrid Inverter price in Bangladesh typically ranges from ৳58,500 to ৳69,000, depending on the vendor, warranty period, and any included installation services. You can find this advanced solar solution from leading solar equipment suppliers and authorized distributors across Bangladesh. To find the LVTOPSUN 6KW 48V Solar Hybrid Inverter near me in Bangladesh, simply search online or contact local solar energy providers. Many suppliers offer convenient delivery in Bangladesh to major cities like Dhaka, Chittagong, Sylhet, Khulna, and beyond, ensuring you can access this state-of-the-art inverter no matter your location. Look for competitive pricing and comprehensive after-sales support to get the best value for your investment.

Conclusion

Embrace energy independence and reliability with the LVTOPSUN 6KW 48V Solar Hybrid Inverter. Its robust design, advanced features, and intelligent energy management capabilities make it an unparalleled choice for individuals and businesses in Bangladesh seeking a stable, efficient, and eco-friendly power solution. Invest in the future of energy today and experience the peace of mind that comes with uninterrupted power. Get the best price for your LVTOPSUN 6KW 48V Solar Hybrid Inverter in Bangladesh and start your journey towards a sustainable and powerful tomorrow.
