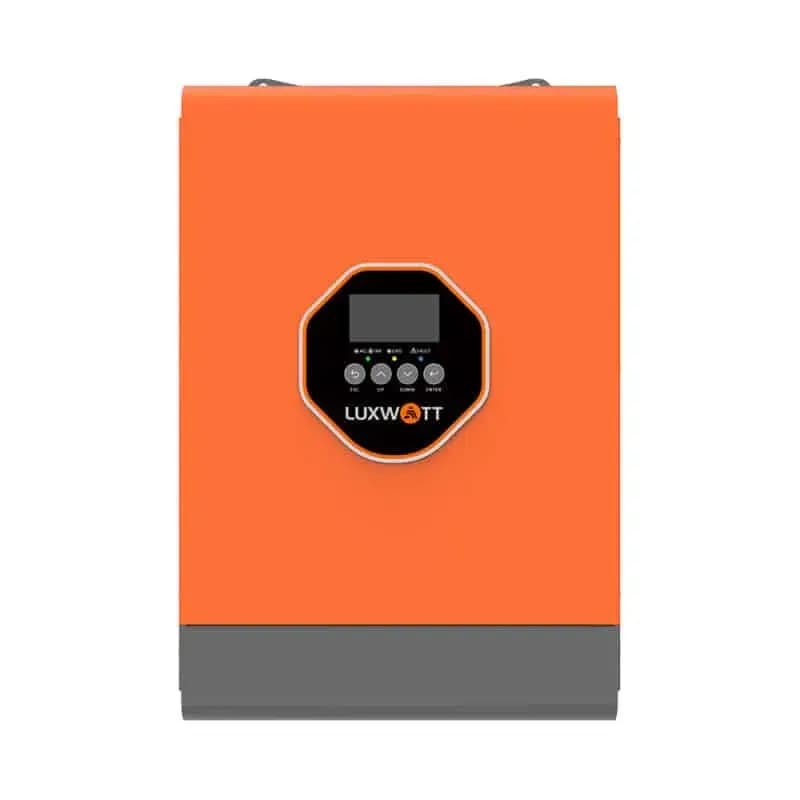

Luxwatt Off - Grid Inverter

হোম ডেলিভারীর ক্ষেত্রে অবশ্যই  ফুল পেমেন্ট করে অর্ডার করতে হবে অথবা ব্রাঞ্চ পিকাপ করতে হবে

Luxwatt Off-Grid Inverter Series: Powering Bangladesh Towards Energy Independence

Welcome to the future of reliable and sustainable power in Bangladesh! The Luxwatt Off-Grid Inverter series, featuring robust 1.2KW, 3.5 KW, and 5 KW models, is engineered to provide uninterrupted, clean energy for homes, businesses, and remote locations across the country. Designed with cutting-edge technology, these inverters are the heart of any independent solar power system, ensuring you have power when and where you need it most. Whether you're looking to reduce your electricity bills, combat frequent power outages, or power a remote facility, Luxwatt Off-Grid Inverters offer a dependable solution.

With a focus on performance, efficiency, and durability, Luxwatt inverters are perfectly suited for the challenging environmental conditions of Bangladesh. Experience true energy freedom with pure sine wave output, advanced MPPT charge controllers, and intelligent battery management, all built into a compact and user-friendly design. Find your ideal Luxwatt Off-Grid Inverter in Bangladesh and take the first step towards a brighter, more sustainable future.

Key Features of Luxwatt Off-Grid Inverters

The Luxwatt Off-Grid Inverter series is packed with features designed for optimal performance and user convenience. Each model, from the compact 1.2KW to the powerful 5 KW, shares a core set of advanced functionalities while scaling in capacity to meet diverse energy demands.

Pure Sine Wave Output for Sensitive Electronics

• All Luxwatt off-grid inverters deliver a pure sine wave output, identical to grid power. This ensures that even the most sensitive electronics, such as computers, medical equipment, and modern home appliances, operate smoothly without damage or interference. This is a critical feature for any reliable off-grid inverter in Bangladesh.

Integrated MPPT Solar Charge Controller

• Equipped with high-efficiency Maximum Power Point Tracking (MPPT) solar charge controllers, Luxwatt inverters maximize power harvesting from your solar panels. This intelligent technology optimizes the voltage and current from your PV array, leading to up to 30% more energy yield compared to traditional PWM controllers.
• 1.2KW Model: Features a robust 50A MPPT controller.
• 3.5KW Model: Incorporates a powerful 100A MPPT controller.
• 5 KW Model: Boasts an advanced 100A MPPT controller for large solar arrays.

High Efficiency and Reliability

• Luxwatt inverters are engineered for high conversion efficiency, minimizing energy loss and maximizing the power delivered to your loads. Their robust design ensures long-term reliability and stable operation, even under varying load conditions.

Multiple Operating Modes

• These inverters offer flexible operating modes including Solar-priority, AC-priority, and Solar-Utility-Battery modes, allowing you to customize your power source based on availability and cost. This adaptability makes them ideal for various off-grid and hybrid setups in Bangladesh.

Comprehensive Protection Features

• Safety is paramount. Luxwatt inverters come with multiple protection features including overload protection, short circuit protection, over-temperature protection, and battery overcharge/discharge protection, safeguarding both the inverter and your connected appliances.

Smart Battery Management

• Intelligent battery charging design optimizes battery performance and extends battery lifespan. The adjustable charging current and voltage settings accommodate various battery types, including flooded, AGM, Gel, and Lithium-ion batteries.

User-Friendly Interface and Monitoring

• A clear LCD display provides real-time system information, including input/output voltage, battery status, charging current, and load percentage.
• Optional communication interfaces (RS232, USB, Wi-Fi/GPRS) enable remote monitoring and control, allowing you to manage your system from anywhere, a significant advantage for users looking for a smart solar inverter in Bangladesh.

Why Choose Luxwatt Off-Grid Inverters for Bangladesh?

Choosing the right off-grid inverter is crucial for a reliable solar power system. Luxwatt inverters stand out in the Bangladesh market for several compelling reasons:

• Unmatched Reliability: Built to withstand the fluctuating power conditions and demanding climate of Bangladesh, Luxwatt inverters offer consistent performance.
• Cost-Effective Energy: By harnessing solar power, you significantly reduce reliance on expensive grid electricity or diesel generators, leading to substantial long-term savings.
• Energy Independence: Gain freedom from power cuts and grid instability, ensuring continuous power supply for your home or business.
• Environmentally Friendly: Contribute to a greener Bangladesh by utilizing clean, renewable solar energy, reducing your carbon footprint.
• Versatile Applications: Perfect for rural electrification, remote cabins, agricultural pumps, small businesses, and urban homes seeking backup power solutions.
• Local Support: Luxwatt is committed to providing excellent customer service and technical support across Bangladesh, ensuring peace of mind for your investment.

Technical Specifications: Luxwatt Off-Grid Inverter Series

Here’s a detailed breakdown of the specifications for each Luxwatt Off-Grid Inverter model:

Luxwatt Off-Grid Inverter 1.2KW Specifications

Feature	Specification
Rated Power	1200W / 1.2kVA
Peak Power	2400W (5 seconds)
Output Waveform	Pure Sine Wave
AC Output Voltage	230VAC ± 5%
AC Output Frequency	50Hz / 60Hz (Auto sensing)
Efficiency (Peak)	>90%
Battery Voltage	12VDC
Max PV Array Power	1500W
MPPT Voltage Range	17VDC ~ 80VDC
Max PV Open Circuit Voltage	100VDC
Max Solar Charge Current	50A
Max AC Charge Current	20A
Combined Charge Current	70A
Dimensions (D x W x H)	350 x 270 x 100 mm
Net Weight	6.5 kg
Protection	Overload, Short Circuit, Over-temperature
Communication	USB, RS232 (Optional Wi-Fi/GPRS)
Operating Temperature	0°C - 55°C

Luxwatt Off-Grid Inverter 3.5 KW Specifications

Feature	Specification
Rated Power	3500W / 3.5kVA
Peak Power	7000W (5 seconds)
Output Waveform	Pure Sine Wave
AC Output Voltage	230VAC ± 5%
AC Output Frequency	50Hz / 60Hz (Auto sensing)
Efficiency (Peak)	>93%
Battery Voltage	24VDC
Max PV Array Power	4000W
MPPT Voltage Range	30VDC ~ 100VDC
Max PV Open Circuit Voltage	145VDC
Max Solar Charge Current	100A
Max AC Charge Current	60A
Combined Charge Current	160A
Dimensions (D x W x H)	480 x 300 x 120 mm
Net Weight	10 kg
Protection	Overload, Short Circuit, Over-temperature
Communication	USB, RS232 (Optional Wi-Fi/GPRS)
Operating Temperature	0°C - 55°C

Luxwatt Off-Grid Inverter 5 KW Specifications

Feature	Specification
Rated Power	5000W / 5kVA
Peak Power	10000W (5 seconds)
Output Waveform	Pure Sine Wave
AC Output Voltage	230VAC ± 5%
AC Output Frequency	50Hz / 60Hz (Auto sensing)
Efficiency (Peak)	>95%
Battery Voltage	48VDC
Max PV Array Power	6000W
MPPT Voltage Range	60VDC ~ 120VDC
Max PV Open Circuit Voltage	145VDC
Max Solar Charge Current	100A
Max AC Charge Current	60A
Combined Charge Current	160A
Dimensions (D x W x H)	520 x 320 x 135 mm
Net Weight	12.5 kg
Protection	Overload, Short Circuit, Over-temperature
Communication	USB, RS232 (Optional Wi-Fi/GPRS)
Operating Temperature	0°C - 55°C

Benefits of Using Luxwatt Off-Grid Inverters

Investing in a Luxwatt Off-Grid Inverter brings numerous advantages, especially in the context of Bangladesh's energy landscape:

• Reduced Electricity Bills: Harnessing free solar energy significantly lowers or eliminates your monthly electricity expenses.
• Reliable Backup Power: Provides seamless transition to battery power during grid outages, ensuring essential appliances remain operational.
• Environmental Impact: Decreases reliance on fossil fuels, contributing to a cleaner environment and reduced carbon emissions in Bangladesh.
• Self-Sufficiency: Ideal for remote areas without grid access or for individuals seeking complete energy independence.
• Long-Term Investment: High-quality components and robust design ensure a long operational lifespan, offering excellent return on investment.
• Enhanced Lifestyle: Enjoy modern conveniences even in off-grid settings, from lighting and refrigeration to entertainment and communication.

Ideal Applications in Bangladesh

The versatility of Luxwatt Off-Grid Inverters makes them suitable for a wide range of applications:

• Residential Homes: Providing primary power or reliable backup for urban and rural households.
• Remote Villages & Islands: Bringing electricity to areas underserved by the national grid.
• Farmhouses & Agricultural Use: Powering irrigation pumps, lighting, and other farm equipment.
• Small Businesses & Shops: Ensuring continuous operation during load shedding, protecting revenue.
• Schools & Community Centers: Facilitating education and community activities with consistent power.
• Telecom Towers & Surveillance Systems: Supplying critical power to isolated infrastructure.

Installation and Usage Guidelines

For optimal performance and safety, it is recommended to have your Luxwatt Off-Grid Inverter installed by a certified solar technician. Key considerations include:

• Proper Sizing: Ensure the inverter capacity matches your total load requirements and solar panel array.
• Ventilation: Install the inverter in a well-ventilated area to prevent overheating.
• Battery Compatibility: Use compatible battery types and ensure proper wiring for the specified voltage (12V for 1.2KW, 24V for 3.5KW, 48V for 5 KW).
• Grounding: Always ensure the inverter is properly grounded.
• Monitoring: Regularly check the LCD display or use optional monitoring tools to keep track of system performance.
