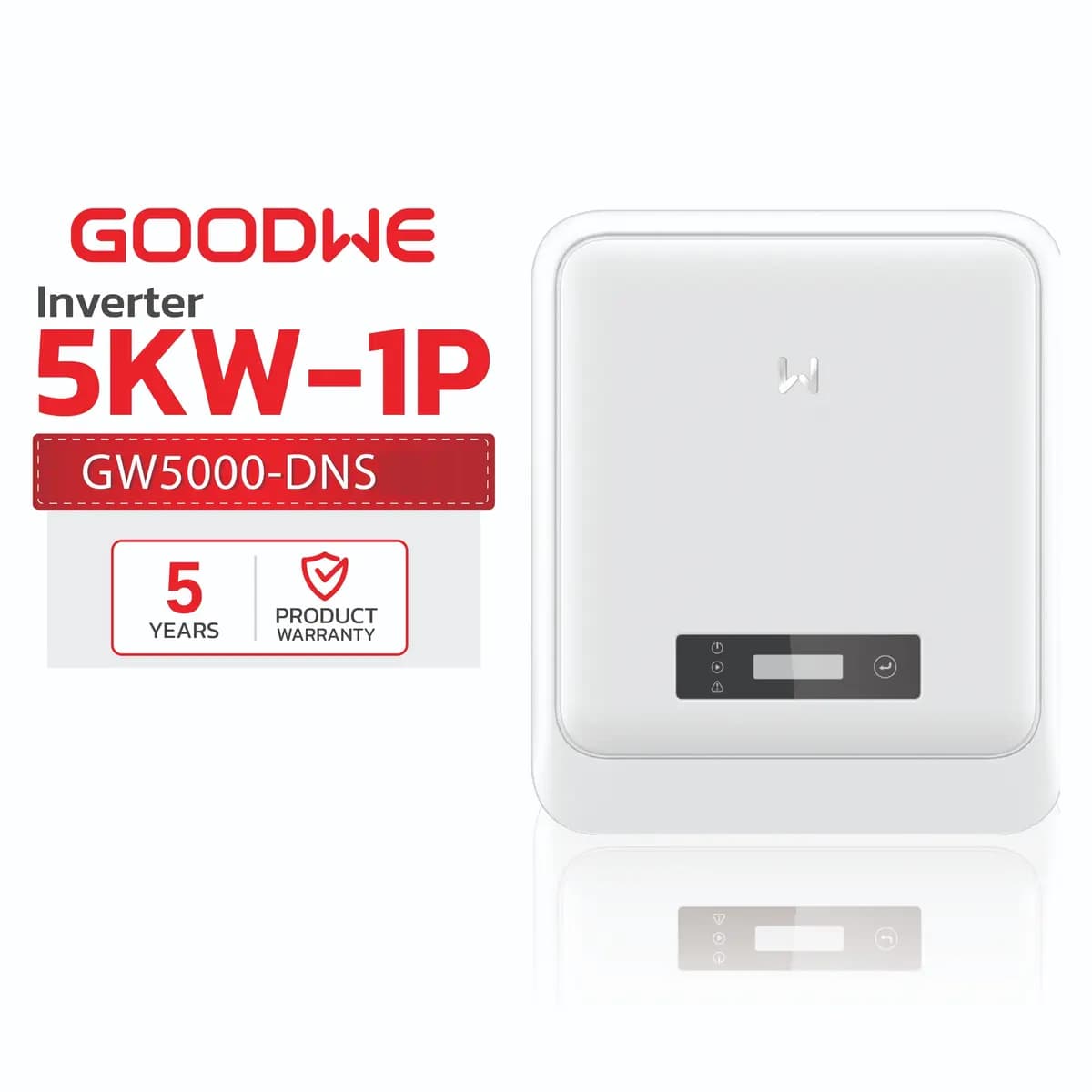

GoodWe 5KW 1-Phase ON-GRID Solar Inverter (GW5000-DNS-40)

GoodWe 5KW 1-Phase ON-GRID Solar Inverter (GW5000-DNS-40)

Price: ৳58,000.00 BDT

Overview

Step into the future of sustainable energy with the GoodWe 5KW 1-Phase ON-GRID Solar Inverter (GW5000-DNS-40), now readily available in Bangladesh. Designed for residential and small commercial solar power systems, this high-performance inverter is a cornerstone for any on-grid solar setup aiming for maximum efficiency and reliability. As a leading brand in the global solar industry, GoodWe brings cutting-edge technology to the Bangladesh market, ensuring your solar investment yields optimal returns. The GW5000-DNS-40 model is specifically engineered to seamlessly integrate with your existing grid, allowing you to not only power your home or business with clean energy but also potentially export surplus electricity back to the grid, contributing to significant savings on your utility bills. If you're searching for a robust and efficient 5KW on-grid inverter in Bangladesh, the GoodWe GW5000-DNS-40 stands out as an exceptional choice.

Key Features

The GoodWe GW5000-DNS-40 is packed with features designed to maximize performance, safety, and user convenience. Here are some of its standout capabilities:

• High Efficiency: Boasting a maximum efficiency of 97.8% and a Euro efficiency of 97.4%, this inverter ensures maximum power harvest from your solar panels, leading to greater energy production and faster ROI for your solar system in Bangladesh.
• Dual MPPT Design: Equipped with two Maximum Power Point Trackers (MPPTs), the GW5000-DNS-40 allows for flexible solar panel array configurations and optimizes energy production even under challenging conditions like partial shading or varied panel orientations.
• Wide MPPT Voltage Range: With an MPPT operating voltage range of 80V to 500V, the inverter offers greater flexibility in string sizing and ensures efficient operation even with fewer panels or during low light conditions.
• Compact and Lightweight Design: Measuring just 354 x 433 x 147 mm and weighing only 13.5 kg, its sleek and compact design makes installation easy and versatile for various residential and commercial settings in Bangladesh.
• IP65 Protection: The robust IP65 rating ensures the inverter is fully protected against dust ingress and low-pressure water jets, making it suitable for outdoor installation and capable of withstanding the diverse weather conditions in Bangladesh.
• Integrated DC Switch: For enhanced safety and convenience during installation and maintenance, a DC switch is integrated directly into the inverter.
• Comprehensive Safety Protections: Features include DC reverse polarity protection, AC overcurrent protection, AC short circuit protection, overvoltage protection (AC/DC), insulation resistance monitoring, and anti-islanding protection, ensuring complete safety for your system and property.
• Smart Monitoring: Built-in Wi-Fi connectivity allows for real-time monitoring of your solar system's performance via the GoodWe SEMS Portal on your smartphone or computer, providing insights into energy production and consumption anywhere in Bangladesh.
• Natural Convection Cooling: Operates silently with natural convection cooling, eliminating the need for noisy fans and reducing maintenance requirements.
• User-Friendly Interface: An intuitive LCD display and LED indicators provide essential operational data at a glance.

Why Choose GoodWe GW5000-DNS-40? (Benefits)

Investing in a GoodWe GW5000-DNS-40 inverter for your solar system in Bangladesh brings a multitude of benefits:

• Maximum Energy Yield: High efficiency and dual MPPTs ensure you get the most out of your solar panels, maximizing electricity generation and reducing your reliance on grid power.
• Cost Savings: By converting solar energy into usable electricity efficiently, you significantly lower your monthly electricity bills. With net metering policies in Bangladesh, you can even earn credits for excess power exported to the grid.
• Reliability and Durability: GoodWe is a globally recognized brand known for its robust and long-lasting products. The GW5000-DNS-40 is built to perform consistently even in challenging environmental conditions.
• Enhanced Safety: With multiple layers of protection, this inverter safeguards your entire solar power system, giving you peace of mind.
• Easy Installation and Maintenance: Its compact design, integrated features, and fanless operation simplify installation and reduce the need for frequent maintenance.
• Smart Home Integration: The Wi-Fi monitoring feature allows you to keep track of your energy production effortlessly, empowering you to make informed decisions about your energy consumption.
• Environmentally Friendly: By generating clean energy, you contribute to reducing carbon emissions and promoting a greener Bangladesh.
• Excellent Value: At a competitive GoodWe 5KW inverter price in Bangladesh of ৳58,000.00 BDT, this inverter offers premium features and performance at an accessible cost.

Technical Specifications

Below is a detailed breakdown of the GoodWe GW5000-DNS-40's technical specifications:

Parameter	Specification
Input Data (DC)
Max. DC Input Power	6500 W
Max. DC Input Voltage	550 V
MPPT Operating Voltage Range	80 V - 500 V
Start-up Voltage	80 V
Rated Input Voltage	360 V
Max. Input Current per MPPT	12.5 A
No. of MPPTs	2
No. of Strings per MPPT	1
Output Data (AC)
Rated AC Output Power	5000 W
Max. AC Output Power	5500 VA
Rated AC Output Voltage (Range)	230 V (180 V - 270 V)
Rated AC Grid Frequency (Range)	50 Hz / 60 Hz (45 Hz - 55 Hz / 55 Hz - 65 Hz)
Max. Output Current	23.9 A
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Grid Connection Type	Single Phase
Efficiency
Max. Efficiency	97.8%
Euro Efficiency	97.4%
Protection
DC Reverse Polarity Protection	Yes
AC Overcurrent Protection	Yes
AC Short Circuit Protection	Yes
Overvoltage Protection (AC/DC)	Yes
Insulation Resistance Monitoring	Yes
Residual Current Monitoring Unit	Yes
Surge Protection (DC/AC)	Type II
Anti-islanding Protection	Yes
General Data
Dimensions (W x H x D)	354 x 433 x 147 mm
Weight	13.5 kg
Topology	Transformerless
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0-100% (non-condensing)
Ingress Protection	IP65
Noise Emission	<25 dB
Cooling	Natural Convection
Display	LCD & LED Indicators
Communication	Wi-Fi (standard), RS485 (optional), GPRS (optional), LAN (optional)
DC Switch	Integrated
Standard Warranty	5 Years (extendable)

Installation & Usage Instructions

For optimal performance and safety, the GoodWe GW5000-DNS-40 should be installed by a certified solar technician. Key steps typically involve:

1. Site Selection: Choose a cool, well-ventilated location, ideally protected from direct sunlight, though its IP65 rating allows for outdoor installation. Ensure adequate clearance around the inverter for natural convection cooling.
2. Mounting: Securely mount the inverter to a sturdy wall using the provided bracket and hardware, ensuring it is level.
3. DC Wiring: Connect the DC input from your solar panels to the designated MPPT inputs, ensuring correct polarity. Utilize the integrated DC switch for safety during connections.
4. AC Wiring: Connect the AC output of the inverter to your main electrical panel/grid connection point, adhering to local electrical codes in Bangladesh.
5. Grounding: Ensure the inverter is properly grounded to prevent electrical hazards.
6. Communication Setup: Connect the Wi-Fi module and configure it to your local network for remote monitoring via the GoodWe SEMS Portal.
7. Commissioning: Power on the DC and AC switches. The inverter will perform self-tests and begin operating, converting solar DC power to AC power for your home or the grid.

Regular monitoring through the SEMS Portal will help ensure your system is operating efficiently. Keep the inverter free from dust and obstructions to maintain optimal cooling.

Safety & Maintenance

The GoodWe GW5000-DNS-40 is designed with multiple safety features. However, for continuous safe operation:

• Always ensure installation is performed by a qualified professional.
• Do not attempt to open or repair the inverter yourself. Refer to authorized service personnel.
• Periodically check the inverter's display for any error codes or warnings.
• Keep the area around the inverter clear to allow for proper airflow and natural cooling.
• Ensure all electrical connections are secure and free from corrosion.

GoodWe Inverter in Bangladesh: Availability & Price

The GoodWe 5KW 1-Phase ON-GRID Solar Inverter (GW5000-DNS-40) is readily available across Bangladesh. You can find this advanced solar inverter through authorized dealers and renewable energy solution providers nationwide. The specified price for the GoodWe GW5000-DNS-40 is ৳58,000.00 BDT. We strive to offer the best price in Bangladesh for this high-quality inverter, ensuring that sustainable energy solutions are accessible to more homes and businesses. For those searching for "GoodWe 5KW Inverter in Bangladesh" or "GoodWe GW5000-DNS-40 price in Bangladesh," you've found a reliable and competitively priced option here. Delivery in Bangladesh is available to major cities like Dhaka, Chittagong, Sylhet, Khulna, and throughout the country, ensuring you can start your solar journey without delay. Contact your nearest dealer to inquire about availability near me in Bangladesh and installation services.

Warranty & Support

The GoodWe GW5000-DNS-40 comes with a standard 5-year manufacturer's warranty, offering peace of mind regarding your investment. This warranty covers manufacturing defects and ensures reliable performance. GoodWe has a strong support network, and our local partners in Bangladesh are equipped to provide technical assistance and after-sales service, ensuring your solar system operates smoothly for years to come. Extended warranty options may also be available upon request.

Conclusion

The GoodWe 5KW 1-Phase ON-GRID Solar Inverter (GW5000-DNS-40) represents an excellent investment for anyone looking to build or upgrade an on-grid solar power system in Bangladesh. Its blend of high efficiency, advanced features, robust safety protections, and smart monitoring capabilities makes it a top-tier choice for residential and small commercial applications. With a competitive price of ৳58,000.00 BDT and strong local availability, embracing solar energy has never been easier or more rewarding. Choose GoodWe for a reliable, efficient, and sustainable energy future.
