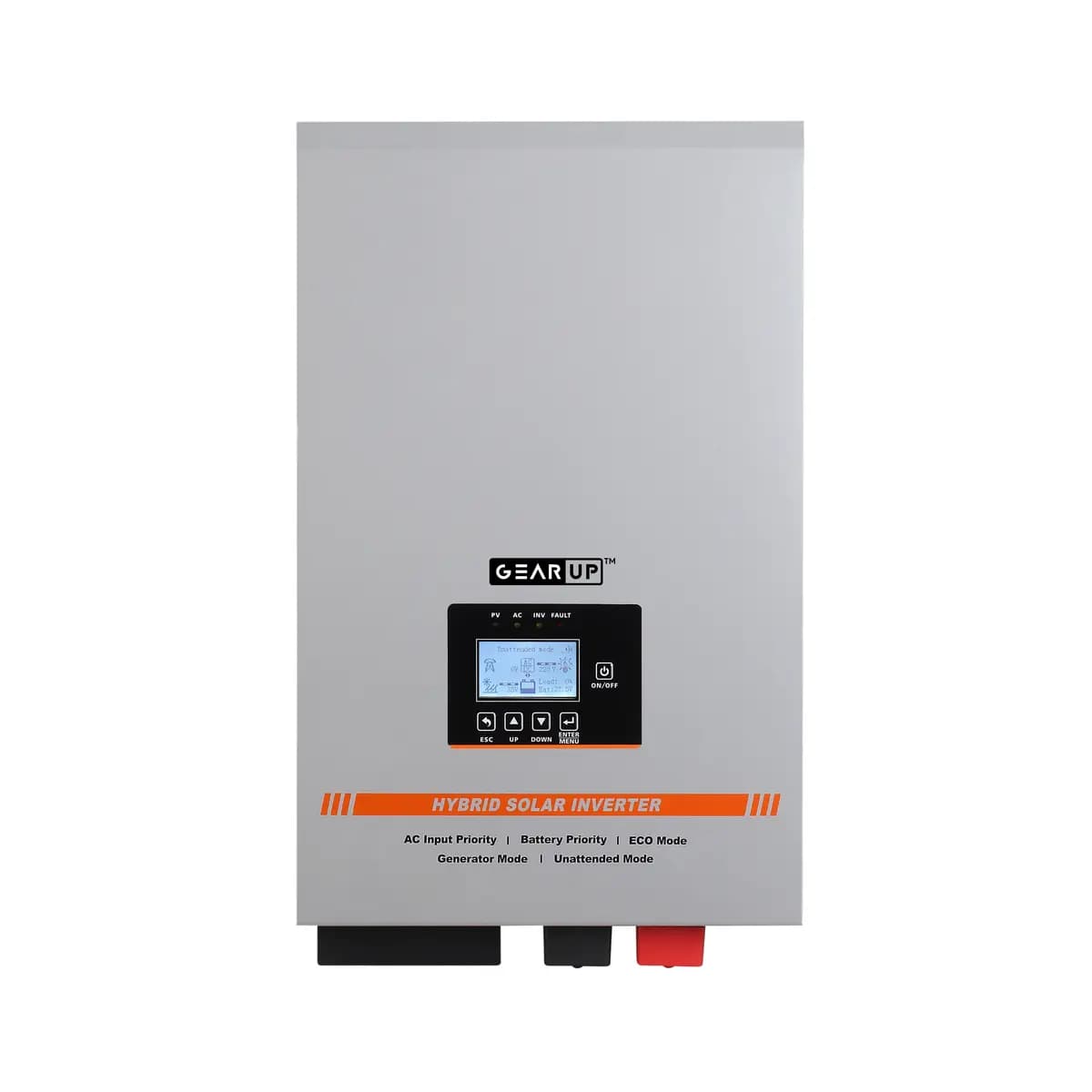

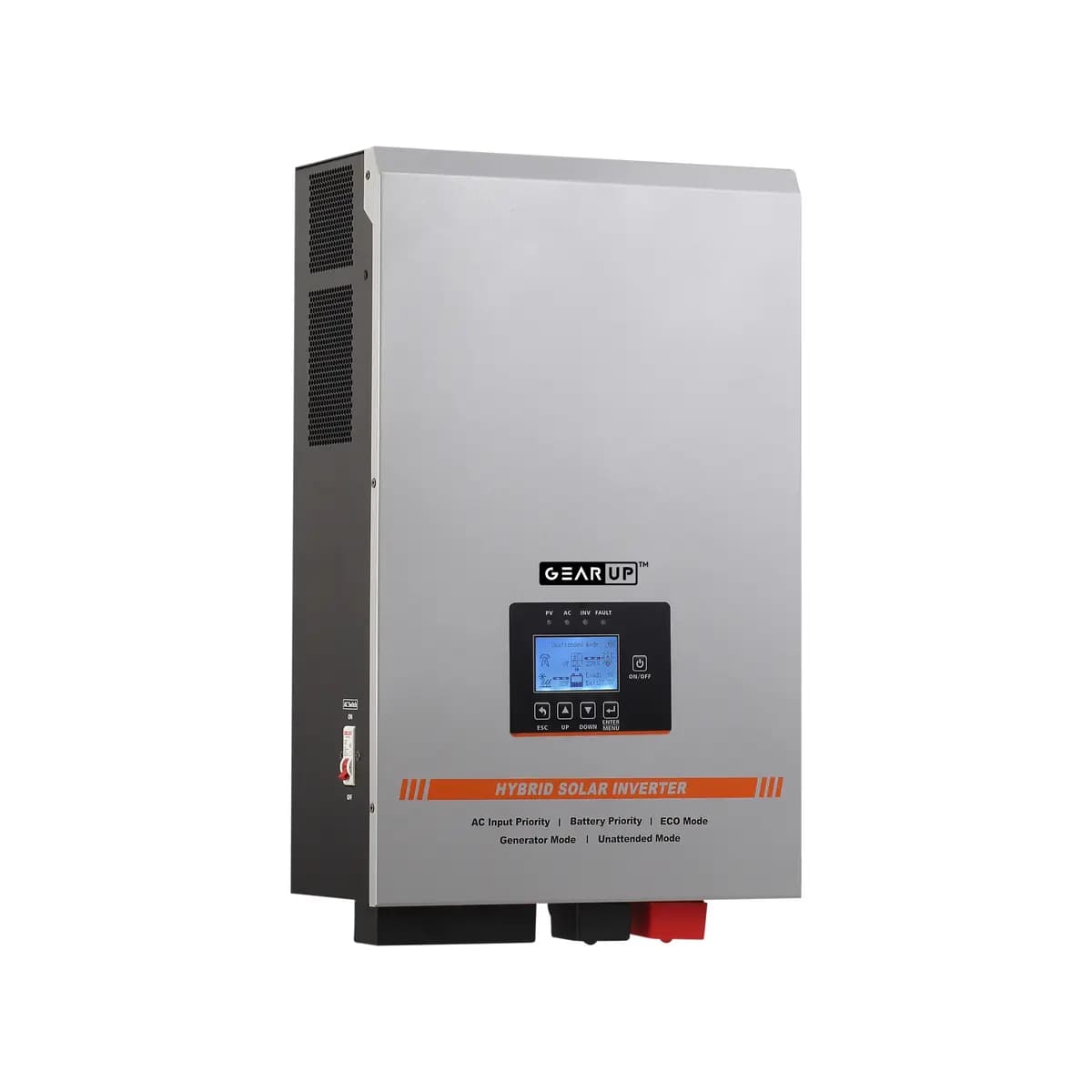

GearUP 6KW (Surge Load 18KW), 48V Low Frequency Off Grid Hybrid Solar Inverter (Solar 60V-150V, 4500W ) - GTG6K48M80

GearUP 6KW, 48V Low Frequency Off Grid Hybrid Solar Inverter (Solar 60V-150V, 4500W) - GTG6K48M80

Overview: Power Your Life, Sustainably, in Bangladesh

Experience unparalleled power reliability and energy independence with the GearUP 6KW, 48V Low Frequency Off Grid Hybrid Solar Inverter (Model: GTG6K48M80). Engineered for robust performance and designed to tackle the most demanding power requirements, this inverter is the ultimate solution for homes, offices, and businesses across Bangladesh facing frequent power outages or seeking to transition to sustainable energy. As a low-frequency hybrid inverter, it combines the best of solar power, battery storage, and grid utility, ensuring a seamless and uninterrupted power supply.

The GearUP GTG6K48M80 is a true workhorse, capable of handling heavy inductive loads with ease, making it perfect for running critical appliances like refrigerators, air conditioners, water pumps, and industrial machinery. Its advanced MPPT solar charge controller efficiently harnesses up to 4500W of solar power from a wide PV input range of 60V-150V, maximizing energy generation even on partially cloudy days. If you're searching for a reliable, high-capacity solar inverter in Bangladesh, the GTG6K48M80 offers exceptional value and performance.

Key Features of the GearUP GTG6K48M80

The GearUP 6KW Low Frequency Hybrid Solar Inverter is packed with features designed to provide superior performance and reliability:

• 6KW Pure Sine Wave Output: Delivers clean, stable, and high-quality AC power, identical to grid power, ensuring the safe and efficient operation of all sensitive electronics and heavy-duty appliances. This robust output capacity makes it ideal for diverse applications across Bangladesh.
• Low Frequency Design: Built with a heavy-duty transformer, this low-frequency inverter offers superior surge capability (up to 18000VA for 20ms) and enhanced durability, making it exceptionally resilient against fluctuating loads and harsh operating conditions often found in the Bangladesh power grid.
• Hybrid Functionality: Intelligently manages power from multiple sources – solar panels, batteries, and the utility grid – to provide continuous power. Prioritize solar energy, battery power, or grid power based on your preferences and energy availability, optimizing energy costs.
• Integrated MPPT Solar Charge Controller: Features a high-efficiency Maximum Power Point Tracking (MPPT) solar charge controller with a maximum PV input power of 4500W and a wide PV input voltage range of 60V-150V. This ensures maximum energy harvest from your solar panels, reducing reliance on the grid.
• 48V DC Input: Compatible with a 48V battery bank, offering excellent efficiency and scalability for larger solar power systems.
• Adjustable AC Charging Current: Allows users to set the AC charging current from 0A to 80A, providing flexibility to charge various battery capacities safely and efficiently from the grid.
• Smart LCD Display: A comprehensive LCD display provides real-time monitoring of system status, input/output voltage, battery charge, solar generation, and fault codes, giving you complete control and insight into your power system.
• Multiple Charging Modes: Offers various charging priority modes (Solar Only, Solar First, Utility First, Solar & Utility) to optimize battery charging and energy usage based on your specific needs and grid availability.
• Comprehensive Protection Features: Equipped with advanced protection mechanisms including overload, short circuit, over-temperature, battery over-voltage/under-voltage, and PV reverse polarity protection, ensuring the safety and longevity of your inverter and connected appliances.
• Generator Compatibility: Designed to work seamlessly with generators, providing an additional layer of backup power during extended grid outages or low solar generation.
• Communication Ports: Includes standard RS232/USB communication ports for PC monitoring software, with optional SNMP and Wi-Fi modules for remote monitoring and control, offering smart home integration capabilities.
• Bypass Functionality: Allows the inverter to bypass the battery and solar power, directly feeding grid power to your loads when required, providing flexibility and efficiency.

Why Choose the GearUP GTG6K48M80 for Your Bangladesh Home or Business?

In a country like Bangladesh, where reliable power can be a challenge, the GearUP GTG6K48M80 stands out as an indispensable solution. Its robust low-frequency design ensures it can withstand the electrical inconsistencies often experienced in the local grid, providing stable power even with fluctuating input. The 6KW capacity is ample for powering most residential needs and even small commercial setups, significantly reducing your electricity bills and carbon footprint.

For those looking for an off-grid solar inverter in Bangladesh, this model offers complete energy independence. Its hybrid capabilities mean you can seamlessly switch between solar, battery, and grid power, ensuring continuous operation. The competitive GearUP 6KW inverter price in Bangladesh makes it an attractive investment for long-term energy savings and peace of mind. With GearUP, you're not just buying an inverter; you're investing in a reliable, sustainable power future.

Technical Specifications: GearUP GTG6K48M80

Below are the detailed technical specifications for the GearUP 6KW, 48V Low Frequency Off Grid Hybrid Solar Inverter, GTG6K48M80:

Category	Specification	Value
Inverter Mode	Rated Power	6000W / 7.5KVA
	DC Input Voltage	48V DC
	AC Output Voltage	220V / 230V AC ± 3%
	AC Output Frequency	50Hz / 60Hz (Auto Sensing)
	Waveform	Pure Sine Wave
	Peak Efficiency (DC to AC)	>90%
	Surge Power	18000Watt (for 20ms)
	Transfer Time	10ms (Typical for UPS mode)
AC Charger Mode	AC Input Voltage Range	170-280V AC (for personal computers) / 90-280V AC (for home appliances)
	Charging Current (Max)	80A (Adjustable)
	DC Output Voltage (Float Charge)	54V DC
	DC Output Voltage (Bulk Charge)	58V DC
Solar Charger Mode	Maximum PV Array Power	4500W
	MPPT Range @ Operating Voltage	60V DC - 150V DC
	Max. PV Array Open Circuit Voltage	160V DC
	Maximum Solar Charging Current	80A
	Maximum Efficiency (Solar to Battery)	>98%
General	Dimensions (L x W x H)	560 mm x 300 mm x 600 mm
	Net Weight	Approximately 40 kg
	Operating Temperature	-10°C to 50°C
	Operating Humidity	0% to 90% RH (Non-condensing)
	Protection	Overload, Short Circuit, Over Temperature, Battery Over/Under Voltage, PV Over Current, PV Reverse Polarity
	Communication Interface	RS232, USB (Standard); Optional: SNMP, Wi-Fi
	WiFi Dongle	Supported (Included)

Usage Instructions & Best Practices

To ensure optimal performance and longevity of your GearUP GTG6K48M80 inverter, please follow these guidelines:

1. Installation Location: Install the inverter in a well-ventilated, cool, and dry area, away from direct sunlight, moisture, and flammable materials. Ensure sufficient clearance around the unit for proper airflow.
2. Battery Bank: Connect a properly sized 48V battery bank. For a 6KW inverter, consider a battery bank with at least 200Ah capacity for adequate backup. Ensure all battery connections are secure and correctly polarized (positive to positive, negative to negative).
3. Solar Panel Connection: Connect your solar panels to the PV input terminals, ensuring the total PV array power does not exceed 4500W and the open circuit voltage stays within the 60V-150V MPPT range. Incorrect voltage can damage the inverter.
4. AC Input/Output: Connect the utility grid to the AC input and your loads to the AC output. Use appropriate gauge wiring for all connections to handle the 6KW load safely.
5. Initial Startup: After all connections are made and checked, switch on the battery breaker first, then the inverter. Observe the LCD display for proper operation and any error codes.
6. Regular Maintenance: Periodically check all wiring connections for tightness, clean dust from ventilation openings, and monitor battery health.
7. Safety First: Always consult a qualified electrician for installation. Do not attempt to open the inverter casing while it is connected to power sources.

Availability and Best Price in Bangladesh

The GearUP 6KW, 48V Low Frequency Off Grid Hybrid Solar Inverter (GTG6K48M80) is readily available across Bangladesh. You can find this advanced solar solution from authorized GearUP dealers and reputable e-commerce platforms nationwide. We strive to offer the best price in Bangladesh for this high-performance inverter, ensuring that sustainable energy solutions are accessible to everyone.

Whether you are in Dhaka, Chittagong, Sylhet, Khulna, or any other part of the country, you can easily purchase the GearUP GTG6K48M80. Look for "GearUP 6KW inverter in Bangladesh" or "GearUP GTG6K48M80 price in Bangladesh" to find local distributors or online stores offering competitive deals. We also offer convenient delivery in Bangladesh to your doorstep, making your purchase hassle-free. For those searching for "solar inverter near me in Bangladesh," our extensive network of partners ensures you can find and acquire this powerful inverter with ease.

Conclusion: Invest in Reliable Power with GearUP

The GearUP 6KW, 48V Low Frequency Off Grid Hybrid Solar Inverter (GTG6K48M80) is more than just an inverter; it's a comprehensive power management system designed for the demands of the modern world, especially in dynamic environments like Bangladesh. Its robust construction, intelligent hybrid functionality, and powerful solar charging capabilities ensure that your home or business remains powered, efficiently and sustainably. Embrace the future of energy with GearUP and enjoy uninterrupted power, reduced electricity bills, and a significant step towards environmental responsibility. Get your GearUP GTG6K48M80 today at the best price in Bangladesh!
